该平台支持pcie gen3.0版本，适用于与x86服务器，在ubuntu/ windows 平台进行高速通信。同时进行硬件算法加速。

Introduction

The ECP5™ Versa Development Board allows designers to investigate and experiment with the features of the

ECP5 Field-Programmable Gate Array. The features of the ECP5 Versa Development Board can assist engineers

with rapid prototyping and testing of their specific designs. The ECP5 Versa Development Board is part of the

ECP5 Versa Development Kit. The guide is intended to be referenced in conjunction with demo user guides to

demonstrate the ECP5 FPGA.

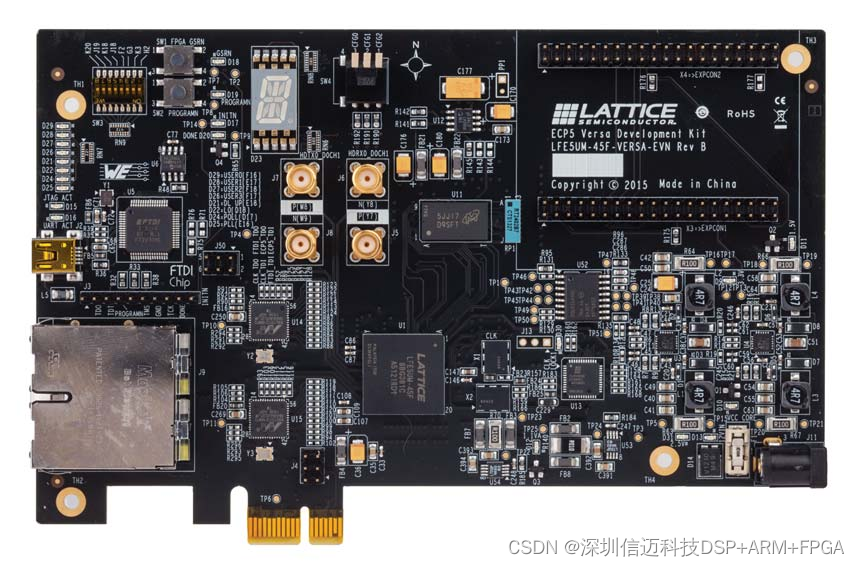

Figure 1. ECP5 Versa Development Board, Top Side

Features

• Half-length PCI Express form-factor

—Allows demonstration of PCI Express x1 interconnection

• Electrical testing of one full-duplex SERDES channel via SMA connections

• USB-B connection for UART and device programming

• Two RJ45 interfaces to 10/100/1000 Ethernet to RGMII

• On-board Boot Flash

—128M Serial SPI Flash

• DDR3-1866 memory components (64Mb/x16)*

• Expansion mezzanine interconnection for prototyping

• 14-segment alpha-numeric display

• Switches, LEDs and displays for demo purposes

• Diamond® programming support

• On-board reference clock sources

信迈提供相关算法评估、硬件评估方案。
