飞腾D2000+X100 TYPE6全国产核心板
飞腾D2000+X100 TYPE6核心****板
产品概述

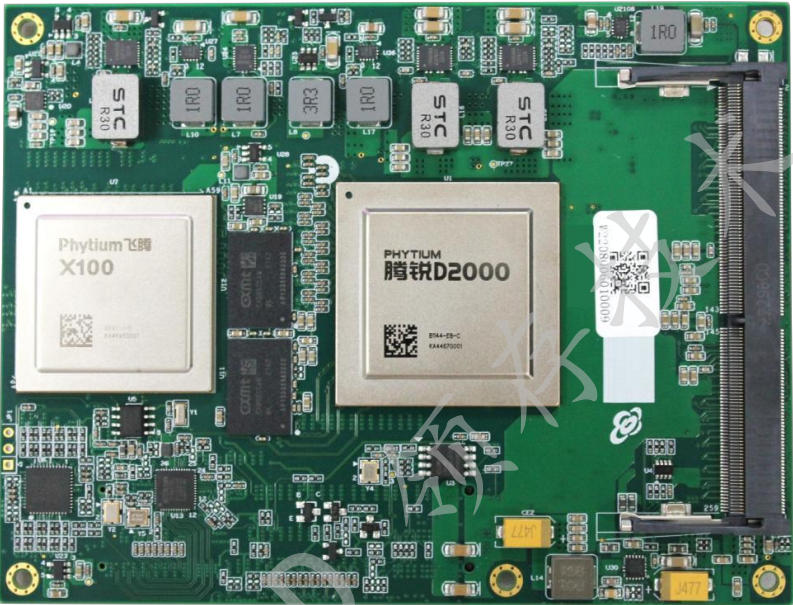

飞腾D2000+X100 TYPE6核心板为增强型自主控制器核心板，其核心芯片CPU采用飞腾D2000/8核工业版CPU、飞腾桥片X100、双通道DDR4L插槽、PHY芯片等。
产品特点
l 基于飞腾D2000+X100桥片
l 丰富的PCIE扩展资源，一路PCIE X16，两路PCIE X2， 四路PCIE X1
l 内存支持两条DDR4，SODIMM，可支持32G
l 国产化***
l 兼容国产操作系统如 银河麒麟V10 ，统信UOS20
产品规格
外形尺寸
95mm*125mm，标准COME-TYPE6
C****PU
飞腾D2000/8核标准版CPU
桥片
飞腾桥片X100
内存
2条DDR4，SODIMM，可支持32G
显示接口
3路DP接口含EDP
PCIE
1路PCIE x16或2PCIE x8，2路PCIE x2， 4路PCIE x1
存储接口
3 个SATA 3.0接口
网络接口
1路PHY YT8521千兆电口
USB
4 个USB 3.1 in COME C-D；4 个USB2.0 in COME A-B
串行接口
6路UART串口
CAN
支持2路CAN总线
SMBus
支持1路SMBus监控
GPIO
8个GPIO
操作系统
银河麒麟V10，统信UOS20
电源
ATX
商业级
工作温度 0℃~50℃；存储温度 -20℃~70℃
准工规级
工作温度 -20℃~70℃；存储温度 -40℃~85℃
工规级
工作温度 -40℃~70℃；存储温度 -40℃~85℃
COME引脚****定义
Row A
Row B
A1
GND (FIXED)
B1
GND (FIXED)
A2
MDI1_N3
B2
LED1/CFG_LDO0_1
A3
MDI1_P3
B3
D2000_LPC_LFRAME_N
A4
LED2/CFG_LDO1_1
B4
D2000_LPC_AD0
A5
LED0/PHYADO_1
B5
D2000_LPC_AD1
A6
MDI1_N2
B6
D2000_ LPC_AD2
A7
MDI1_P2
B7
D2000_LPC_AD3
A8
NC
B8
D2000_LPC_LDRQ_N
A9
MDI1_N1
B9
D2000_LPC_RESET
A10
MDI1_P1
B10
COME_CLK_33M
A11
GND (FIXED)
B11
GND (FIXED)
A12
MDI1_N0
B12
FTX100_PWR_BIN
A13
MDI1_P0
B13
SMB1_CK
A14
NC
B14
SMB1_DAT
A15
SLP_S3
B15
SMB1_ALERT
A16
SATA_TXP0
B16
SATA_TXP1
A17
SATA_TXN0
B17
SATA_TXN1
A18
SLP_S4
B18
NC
A19
SATA_RXP0
B19
SATA_RXP1
A20
SATA_RXN0
B20
SATA_RXN1
A21
GND (FIXED)
B21
GND (FIXED)
A22
SATA_TXP2
B22
NC
A23
SATA_TXN2
B23
NC
A24
SLP_S4
B24
SYS_PWROK
A25
SATA_RXP2
B25
NC
A26
SATA_RXN2
B26
NC
A27
NC
B27
WDT
A28
SATA_STATUS_LED
B28
NC
A29
HDA_SYNC_48Khz
B29
NC
A30
HDA_RST
B30
CPU_HDA_SDI0
A31
GND (FIXED)
B31
GND (FIXED)
A32
HDA_BCLK_24Mhz
B32
BUZZER
A33
HDA_SDO
B33
FT_I2C3_SCL
A34
NC
B34
FT_I2C3_SDA
A35
NC
B35
NC
A36
USB2_P4_DN
B36
USB2_P1_DN
A37
USB2_P4_DP
B37
USB2_P1_DP
A38
USB_VBUS_OC2_N
B38
USB_VBUS_OC3_N
A39
USB2_P0_DN
B39
USB2_P6_DN
A40
USB2_P0_DP
B40
USB2_P6_DP
A41
GND (FIXED)
B41
GND (FIXED)
A42
USB2_P3_DN
B42
USB2_P7_DN
A43
USB2_P3_DP
B43
USB2_P7_DP
A44
USB_VBUS_OC0_N
B44
USB_VBUS_OC1_N
A45
USB2_P2_DN
B45
USB2_P5_DN
A46
USB2_P2_DP
B46
USB2_P5_DP
A47
VBAT
B47
PCIERST
A48
NC
B48
NC
A49
NC
B49
FTX100_SYSRSTN
A50
LPC_IRQ_N
B50
NC
A51
GND (FIXED)
B51
GND (FIXED)
A52
PCIE_DOWN5_TXP
B52
PCIE_DOWN5_RXP
A53
PCIE_DOWN5_TXN
B53
PCIE_DOWN5_RXN
A54
CPU_GPIO0_A3
B54
CPU_GPIO1_B2
A55
PCIE_DOWN4_TXP
B55
PCIE_DOWN4_RXP
A56
PCIE_DOWN4_TXN
B56
PCIE_DOWN4_RXN
A57
GND
B57
CPU_GPIO1_B3
A58
PCIE_DOWN3_TXP
B58
PCIE_DOWN3_RXP
A59
PCIE_DOWN3_TXN
B59
PCIE_DOWN3_RXN
A60
GND (FIXED)
B60
GND (FIXED)
A61
PCIE_DOWN2_TXP
B61
PCIE_DOWN2_RXP
A62
PCIE_DOWN2_TXN
B62
PCIE_DOWN2_RXN
A63
CPU_GPIO0_A4
B63
CPU_GPIO1_B4
A64
PCIE_DOWN0_TXP0
B64
PCIE_DOWN0_RXP0
A65
PCIE_DOWN0_TXN0
B65
PCIE_DOWN0_RXN0
A66
GND
B66
SYS_WAKE_N
A67
CPU_GPIO0_A5
B67
NC
A68
PCIE_DOWN0_TXP1
B68
PCIE_DOWN0_RXP1
A69
PCIE_DOWN0_TXN1
B69
PCIE_DOWN0_RXN1
A70
GND (FIXED)
B70
GND (FIXED)
A71
PCIE_DOWN1_TXP0
B71
PCIE_DOWN1_RXP0
A72
PCIE_DOWN1_TXN0
B72
PCIE_DOWN1_RXN0
A73
NC
B73
NC
A74
PCIE_DOWN1_TXP1
B74
PCIE_DOWN1_RXP1
A75
PCIE_DOWN1_TXN1
B75
PCIE_DOWN1_RXN1
A76
NC
B76
NC
A77
NC
B77
NC
A78
NC
B78
NC
A79
NC
B79
NC
A80
GND (FIXED)
B80
GND (FIXED)
A81
NC
B81
USB_VBUS_EN1
A82
NC
B82
USB_VBUS_EN2
A83
NC
B83
USB_VBUS_EN3
A84
NC
B84
NC
A85
CPU_GPIO0_A6
B85
NC
A86
USB_VBUS_EN0
B86
NC
A87
NC
B87
NC
A88
VPX_CLK_PCIE_P
B88
NC
A89
VPX_CLK_PCIE_N
B89
NC
A90
GND (FIXED)
B90
GND (FIXED)
A91
P3V3
B91
x100_I2S_CLK
A92
CPU_SPI1_SO
B92
x100_I2S_WS
A93
CPU_GPIO1_B1
B93
x100_I2S_SDI0
A94
CPU_SPI1_SCK
B94
x100_I2S_MCLK
A95
CPU_SPI1_SI
B95
x100_I2S_SDO0
A96
NC
B96
NC
A97
NC
B97
CPU_SPI1_CSN0
A98
CPU_CAN_TXD0
B98
FTX100_SE_TX
A99
CPU_CAN_RXD0
B99
FTX100_SE_RX
A100
GND (FIXED)
B100
GND (FIXED)
A101
CPU_CAN_TXD1
B101
CPU_FAN_PWM
A102
CPU_CAN_RXD1
B102
CPU_FAN_TACH
A103
NC
B103
NC
A104
VCC_12V
B104
VCC_12V
A105
VCC_12V
B105
VCC_12V
A106
VCC_12V
B106
VCC_12V
A107
VCC_12V
B107
VCC_12V
A108
VCC_12V
B108
VCC_12V
A109
VCC_12V
B109
VCC_12V
A110
GND (FIXED)
B110
GND (FIXED)
Row C
Row D
C1
GND (FIXED)
D1
GND (FIXED)
C2
GND
D2
GND
C3
USB3_P0_RXN
D3
USB3_P0_TXN
C4
USB3_P0_RXP
D4
USB3_P0_TXP
C5
GND
D5
GND
C6
USB3_P1_RXN
D6
USB3_P1_TXN
C7
USB3_P1_RXP
D7
USB3_P1_TXP
C8
GND
D8
GND
C9
USB3_P2_RXN
D9
USB3_P2_TXN
C10
USB3_P2_RXP
D10
USB3_P2_TXP
C11
GND (FIXED)
D11
GND (FIXED)
C12
USB3_P3_RXN
D12
USB3_P3_TXN
C13
USB3_P3_RXP
D13
USB3_P3_TXP
C14
GND
D14
GND
C15
NC
D15
X100_AUXA_DP
C16
NC
D16
X100_AUXA_DN
C17
X100_UART_TXD0
D17
D2000_UART0_TXD
C18
X100_UART_RXD0
D18
D2000_UART0_RXD
C19
PEU0_X1_RXP
D19
PEU0_X1_TXP
C20
PEU0_X1_RXN
D20
PEU0_X1_TXN
C21
GND (FIXED)
D21
GND (FIXED)
C22
PEU1_X1_RXP
D22
PEU1_X1_TXP
C23
PEU1_X1_RXN
D23
PEU1_X1_TXN
C24
DP0_HPD_IN
D24
CPU_DEBUG_UART_TXD
C25
NC
D25
CPU_DEBUG_UART_RXD
C26
NC
D26
X100_DP0_L0_P
C27
X100_UART_TXD1
D27
X100_DP0_L0_N
C28
X100_UART_RXD1
D28
P1V8
C29
NC
D29
X100_DP0_L1_P
C30
NC
D30
X100_DP0_L1_N
C31
GND (FIXED)
D31
GND (FIXED)
C32
X100_AUXB_DP
D32
X100_DP0_L2_P
C33
X100_AUXB_DN
D33
X100_DP0_L2_N
C34
NC
D34
NC
C35
PS_ON
D35
P1V8_AUX
C36
X100_AUXC_DP
D36
X100_DP0_L3_P
C37
X100_AUXC_DN
D37
X100_DP0_L3_N
C38
NC
D38
VDDIO25_STB
C39
X100_DP2_L0_P
D39
X100_DP1_L0_P
C40
X100_DP2_L0_N
D40
X100_DP1_L0_N
C41
GND (FIXED)
D41
GND (FIXED)
C42
NC
D42
X100_DP1_L1_P
C43
NC
D43
X100_DP1_L1_N
C44
DP2_HPD_IN
D44
DP1_HPD_IN
C45
DATA_8388
D45
FTX100_WAKEUP_N
C46
SE_SMBCLK
D46
X100_DP1_L2_P
C47
SE_SMBDAT
D47
X100_DP1_L2_N
C48
FT_PEU0_LINKUP0
D48
FT_PEU1_LINKUP0
C49
COME_CLK_PEG_P
D49
X100_DP1_L3_P
C50
COME_CLK_PEG_N
D50
X100_DP1_L3_N
C51
GND (FIXED)
D51
GND (FIXED)
C52
FT_PEU0_RXP0
D52
FT_PEU0_TXP0
C53
FT_PEU0_RXN0
D53
FT_PEU0_TXN0
C54
NC
D54
NC
C55
FT_PEU0_RXP1
D55
FT_PEU0_TXP1
C56
FT_PEU0_RXN1
D56
FT_PEU0_TXN1
C57
NC
D57
NC
C58
FT_PEU0_RXP2
D58
FT_PEU0_TXP2
C59
FT_PEU0_RXN2
D59
FT_PEU0_TXN2
C60
GND (FIXED)
D60
GND (FIXED)
C61
FT_PEU0_RXP3
D61
FT_PEU0_TXP3
C62
FT_PEU0_RXN3
D62
FT_PEU0_TXN3
C63
X100_UART_TXD2
D63
X100_UART_TXD3
C64
X100_UART_RXD2
D64
X100_UART_RXD3
C65
FT_PEU0_RXP4
D65
FT_PEU0_TXP4
C66
FT_PEU0_RXN4
D66
FT_PEU0_TXN4
C67
NC
D67
GND
C68
FT_PEU0_RXP5
D68
FT_PEU0_TXP5
C69
FT_PEU0_RXN5
D69
FT_PEU0_TXN5
C70
GND (FIXED)
D70
GND (FIXED)
C71
FT_PEU0_RXP6
D71
FT_PEU0_TXP6
C72
FT_PEU0_RXN6
D72
FT_PEU0_TXN6
C73
GND
D73
GND
C74
FT_PEU0_RXP7
D74
FT_PEU0_TXP7
C75
FT_PEU0_RXN7
D75
FT_PEU0_TXN7
C76
GND
D76
GND
C77
POWER_LED
D77
NC
C78
FT_PEU0_RXP8
D78
FT_PEU0_TXP8
C79
FT_PEU0_RXN8
D79
FT_PEU0_TXN8
C80
GND (FIXED)
D80
GND (FIXED)
C81
FT_PEU0_RXP9
D81
FT_PEU0_TXP9
C82
FT_PEU0_RXN9
D82
FT_PEU0_TXN9
C83
OCT_FAN_PWM
D83
OCT_FAN_TACH
C84
GND
D84
GND
C85
FT_PEU0_RXP10
D85
FT_PEU0_TXP10
C86
FT_PEU0_RXN10
D86
FT_PEU0_TXN10
C87
GND
D87
GND
C88
FT_PEU0_RXP11
D88
FT_PEU0_TXP11
C89
FT_PEU0_RXN11
D89
FT_PEU0_TXN11
C90
GND (FIXED)
D90
GND (FIXED)
C91
FT_PEU0_RXP12
D91
FT_PEU0_TXP12
C92
FT_PEU0_RXN12
D92
FT_PEU0_TXN12
C93
GND
D93
GND
C94
FT_PEU0_RXP13
D94
FT_PEU0_TXP13
C95
FT_PEU0_RXN13
D95
FT_PEU0_TXN13
C96
GND
D96
GND
C97
SYS_FAN_PWM
D97
SYS_FAN_TACH
C98
FT_PEU0_RXP14
D98
FT_PEU0_TXP14
C99
FT_PEU0_RXN14
D99
FT_PEU0_TXN14
C100
GND (FIXED)
D100
GND (FIXED)
C101
FT_PEU0_RXP15
D101
FT_PEU0_TXP15
C102
FT_PEU0_RXN15
D102
FT_PEU0_TXN15
C103
GND
D103
GND
C104
VCC_12V
D104
VCC_12V
C105
VCC_12V
D105
VCC_12V
C106
VCC_12V
D106
VCC_12V
C107
VCC_12V
D107
VCC_12V
C108
VCC_12V
D108
VCC_12V
C109
VCC_12V
D109
VCC_12V
C110
GND (FIXED)
D110
GND (FIXED)
